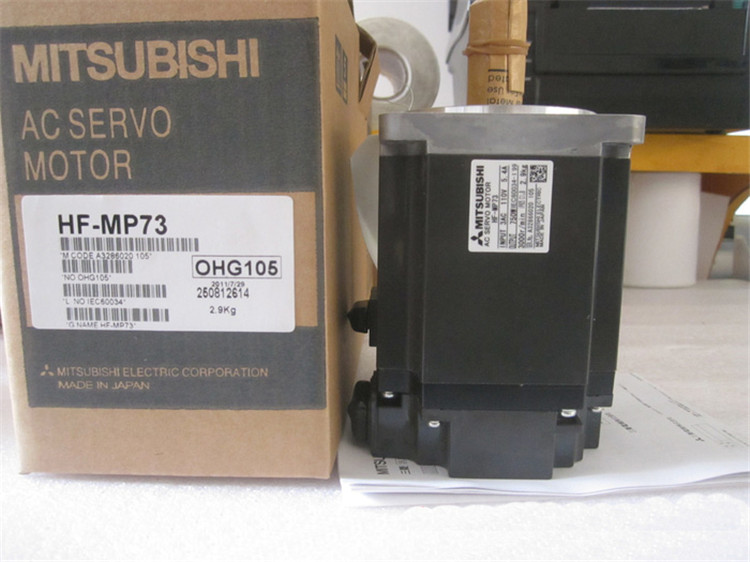

HF-MP73 Ultra low inertia small power servo motor

MITSUBISHI HF-MP73 Manual And Instructions
HF-MP73 datasheetPDF datasheet

MITSUBISHI HF-MP73 Product information and technical parameters:
Brand: MITSUBISHI
Name: Ultra low inertia small power servo motor
Model: HF-MP73
Servo motor series: ultra low inertia, low power.
Rated output: 0.75kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: ultra low inertia is very suitable for high frequency operation.
IP level: IP65.
Application example:
1, insert machine.
2, assembly machinery.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).

Motor series: ultra low inertia, small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.1kw.
Rated speed: 3000rpm.
With the brake with brake.
Without GB.
Shaft end: straight shaft.
The rotor of the servo motor is a permanent magnet, and the control of the servo amplifier is controlled by the U/V/W three-phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field, and the encoder feedback signal of the motor is given to the driver,
According to the feedback value and the target value, the driver is compared,
Adjust the rotor rotation angle HF-MP73 HF-MP73
The accuracy of the servo motor is determined by the resolution of the encoder. The length of the line: 5M HF-MP73.
IP level: IP65.
Bending life: standard.
Electric motor power supply cable for HF-KP/HF-MP series (motor shaft with side extraction). Type: general purpose AC servo amplifier MR-E series.
Rated output: 0.1kw.
Interface type: general purpose pulse interface.
KH003 special mark for Super MR-E.
High performance and easy to operate, reduce work load.
Enhanced system cost performance HF-MP73.
High performance, high precision positioning (servo motor encoder resolution: 131072).
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface.
The analog input interface is used for speed control and torque control. Servo motor series: medium inertia, small capacity.
Rated output: 3.5kw.
Rated speed: 2000r/min.
Electromagnetic brake: incidental.
Power supply: 400V.
Stable driving of medium capacity and medium inertia type products.
Through the optimization of structural design, to achieve the minimum length of the inndustry HF-MP73.
High speed & high torque. Shorten the positioning time, achieve high-speed equipment.
Reducing the electric torque ripple.
Through the combination of the optimal number of the motor and the slot number, the torque ripple is greaatly reduced,
To further realize the smooth constant speed device HF-MP73.
Improve the environmental performance of HG-SR, HG-JR series of products using IP67.
