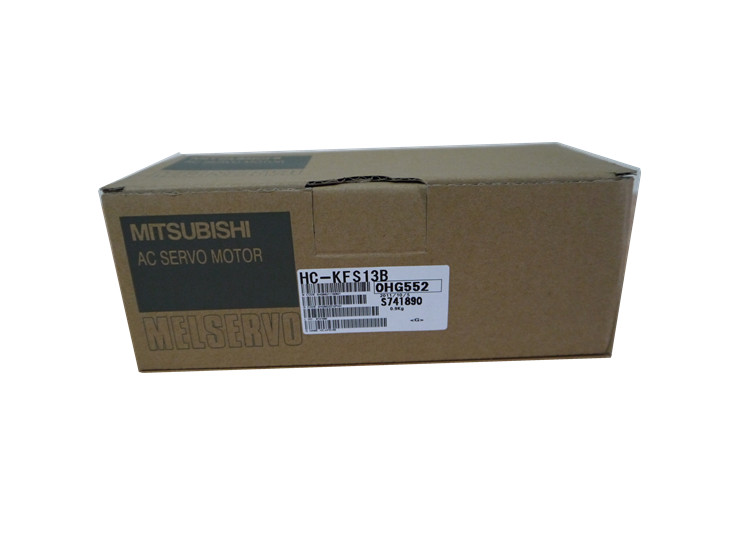

HC-KFS13B Low inertia small power motor

MITSUBISHI HC-KFS13B Manual And Instructions
HC-KFS13B datasheetPDF datasheet

MITSUBISHI HC-KFS13B Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small power motor
Model: HC-KFS13B
Motor series: low inertia, low power.
Rated output power: 0.1kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

Type: HF-SE servo motor, medium inertia power.
Rated output power: 2.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Oil seal: have.
Encoder resolution: 131072p/r.
S100 representative: Super MR-E special motor.
KH003 special mark for Super MR-E.
Servo amplifier terminals are used to reduce the required wiring time HC-KFS13B.
The connector is located in front of the servo amplifier, which is convenient for cable connection HC-KFS13B
The gain adjustment can be easily carried out by the real-time automatic tuning function.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment.
High performance and easy to operate, reduce work load HC-KFS13B.
Enhanced system cost performance.
High performance, high precision positioning (servo motor encoder resolution: 131072).
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface HC-KFS13B.
The analog input interface is used for speed control and torque control. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 3.5kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: three phase AC400V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication.
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations HC-KFS13B.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient.

The servo amplifier can be used for speed control operation HC-KFS13B.
When the two stations are occupied, the speed can be set directly by the remote register.
