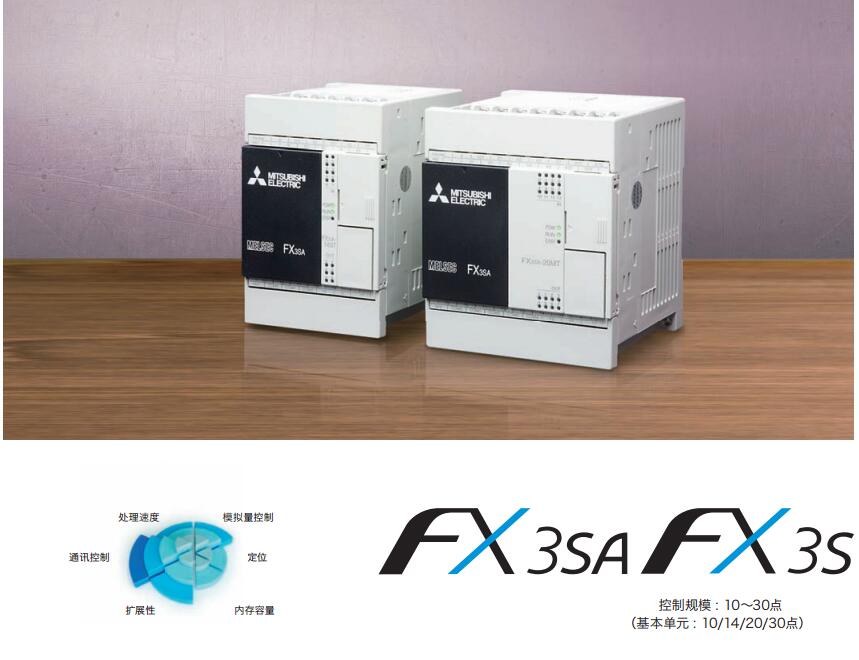

FX3S-14MR/DS PLC

MITSUBISHI FX3S-14MR/DS Manual And Instructions
FX3S-14MR/DS datasheetPDF datasheet

MITSUBISHI FX3S-14MR/DS Product information and technical parameters:
Brand: MITSUBISHI
Name: PLC
Model: FX3S-14MR/DS
Input and output points: 14 points.
Power supply: DC24V.
Input points: 8 points.
Output points: 6 points.
Output form: relay output.
Power consumption: 6.5W.
Weight: 0.22KG.
Outline dimension: 60x90x49mm.
Built in CPU, power supply, input and output.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on.

Function: 4CH voltage / current output.
Adapter for connecting the left extension function of the CPU module.
CPU module can be connected to the left side up to 6 units. Output: 16 points.
Function: bidirectional thyristor output models.
Corresponding models: FX3GA, FX3G, FX3GE, FX3GC, FX3U, FX3UC.
Can carry on the FX3GC, the FX3UC basic unit and the expansion module or the localization module the connector and the terminal station transformation,
Save the time of the input and output connection, realize the labor saving FX3S-14MR/DS FX3S-14MR/DS
The use of built-in input and output components models,
Can receive AC100V input, or through the relay or the transistor to drive large capacity load. Length: 0.1m.Input and output points: 24 points FX3S-14MR/DS.
Power supply: AC100-240V.
Input points: 14 points.
Output points: 10 points.
Output form: transistor output (drain).
Power consumption: 32W.
Weight: 0.55KG.
Outline dimension: 90x90x86mm.
EEPROM memory cartridge with program transfer function.
Third generation standard model.
Easy to use integrated models and flexible scalability.
Condensed convenience of using the usual FX3 series FX3S-14MR/DS.
Its high price by the most suitable for small scale control.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Application instruction: 0.5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
Auxiliary relay: 7680 points.
Timer: 320 points.
Counter: 235.
Data register: 8000.
Extended register: 24000 point.
Extended file register: 24000.
A free combination of PLC.
FX3G basic unit: 14/24/40/60 point.
FX3GA is a compact PLC, simple design and with the basic functions of the FX3 series.
Through the strengthening of the built-in function and flexible expansion, expanded in various fields of application.
Third generation standard model.
High flexibility.
Suitable for small scale control of high cost.
Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points. Input points: 16 poiints FX3S-14MR/DS.
Power supply: the basic unit to the expansion module to provide power.
Terminal type: connector type.
Weight: 0.15kg.
FX3GC, FX3UC can be directly connected to the input and output expansion equipment, to achieve a compact expansiion FX3S-14MR/DS.
Can choose 16 points, 32 points of the relay or transistor input and output models.
FX2NC-16E_-T-DS for terminal units can be disassembled models.


...More relevant models >>>>
