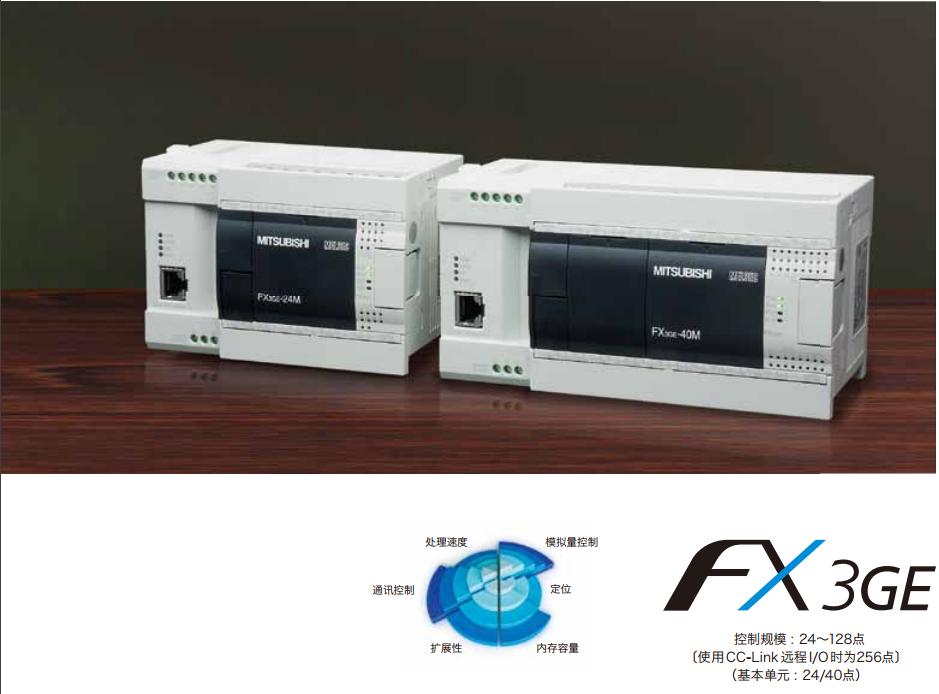

MITSUBISHI FX3GE-24MR/ES Manual And Instructions
FX3GE-24MR/ES datasheetPDF datasheet
FX3GE-24MR/ES Basic & Applied Instructions EditionPROGRAMMING MANUAL

MITSUBISHI FX3GE-24MR/ES Product information and technical parameters:
Name: PLC
Model: FX3GE-24MR/ES
Input and output points: 24 points.
Power supply: AC100-240V.
Input points: 14 points.
Output points: 10 points.
Output form: relay output.
Power consumption: 32W.
Weight: 0.55KG.
Outline dimension: 90x90x86mm.
FX3GE on the performance of the FX3GA increased analog input / output and Ethernet communication and other built-in features.
Applicable to a wide variety of applications.
Basic unit: 24/40 point.
Third generation standard model.
High flexibility.
Suitable for small scale control of high cost PLC.
Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points.
A versatile PLC.
Built in CPU, power supply, input and output, analog input and output, Ethernet port, can be used immediately after the purchase.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Application instruction: 0.5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.

Special module for RS-232C communication.
This serial communication module, you can communicate with the computer, printer, code reader and other equipment with RS-232C communication function.
The data can be transmitted through the buffer storage area of the module, and the data transfer between the PLC host and the module is realized FX3GE-24MR/ES.
When you connect to FX3UC, you need FX2NC-CNV-IF or FX3UC-1PS-5V FX3GE-24MR/ES Use FX3S-CNV-ADP when connecting to the left of the basic unit of the FX3GA, FX3U, and FX3G.Max input / output points: 32 points.
Power supply voltage: 24VDC.
Input points: 16 points.
Output points: 16 points.
Output type: relay.
Power consumption: 30W.
Weight (kg):0.65.
Size (WxHxD) mm:150x90x86 FX3GE-24MR/ES.
Built in CPU, power supply, input and output. By using a rich variety of functional extension boards and special adapters,
Can achieve high precision control.
Based on the function of FX2N has been greatly strengthened and enhanced.
High speed operation.
Basic instructions: 0.065 s/ instruction.
Application instruction: 0.642 s/ instruction.
Large capacity memory.
Built in program memory 64000 steps FX3GE-24MR/ES.
Flash memory cartridge with program transfer function.
Corresponding EN and UL/cUL authentication.
Faster and more efficient. Support high speed control and network communication, and have the function of data recording.
High speed, large capacity, multi-function high-end machine.
FX3U supports high speed processing, CC-Link communication, network communication, analog control and advanced positioning system.
Connected to the CC-Link, including the remote I/O, the maximum input and output control points up to 384 points,
Can correspond to a varietty of field needs, the use of its scalability and flexibility to expand the scope of application of the control system FX3GE-24MR/ES.
Third generation high function micro programmable controller.
High speed, high efficiency, high performance, large capacity, and new features FX3GE-24MR/ES.
Built in high speed processing and positioning.
Control points: maximum 256 points.
Use CC-Link remote I/O for 384 points.
