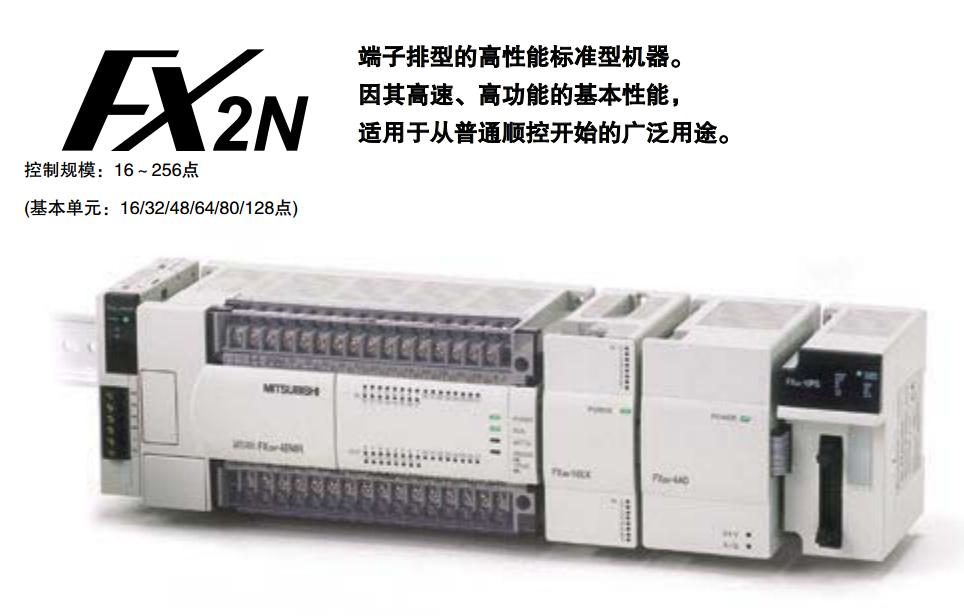

FX2N-80MT-DSS PLC

MITSUBISHI FX2N-80MT-DSS Manual And Instructions
FX2N-80MT-DSS datasheetPDF datasheet
FX2N-80MT-DSS PROGRAMMING MANUAL II

MITSUBISHI FX2N-80MT-DSS Product information and technical parameters:
Brand: MITSUBISHI
Name: PLC
Model: FX2N-80MT-DSS
Max input / output points: 80 points.
Power supply voltage: 24VDC.
Input points: 40 points.
Output points: 40 points.
Output type: Transistor (source).
Power consumption: 40W.
Weight (kg):1.2.
Size (WxHxD) mm:285x90x87.
Developed a range of special function modules to meet the needs of different - analog I/O, high speed counter.
Positioning control to achieve the 16 axis, the pulse train output or for the J and K type thermocouple or Pt sensor developed the temperature module.
A total of 8 special function modules can be configured for each FX2n main unit.
Note recording function, Component annotation can be recorded in the program register.
Online program editor, online change the program will not lose the working hours or stop production operation.
RUN/STOP switch, running on panel / stop switch easy to operate.
Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications
Password protection, using a eight digit password to protect your program.
Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.
Continuous scanning function, to define the operation cycle for the application of the continuous scan time.
Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).

Function: terminal row input.
Input points: 16 points.
Connected programmable logic controller: FX1NC, FX2NC, FX3UC.
Weight: 0.15KG.
FX2NC expansion module can be directly connected to the FX1NC, FX2NC, PLC FX3UC on the expansion of the input and output.
Do not need to connect the cable and so on, therefore can carry on the compact expansion FX2N-80MT-DSS. Max input / output points: 64 points.
Power supply voltage: 24VDC FX2N-80MT-DSS
Input points: 32 points.
Output points: 32 points.
Output type: Transistor (source).
Power consumption: 40W.
Weight (kg):1.0.
Size (WxHxD) mm:220x90x86.
Built in CPU, power supply, input and output. By using a rich variety of functional extension boards and special adapters,
Can achieve high precision control FX2N-80MT-DSS.
Based on the function of FX2N has been greatly strengthened and enhanced.
High speed operation.
Basic instructions: 0.065 s/ instruction.
Application instruction: 0.642 s/ instruction.
Large capacity memory.
Built in program memory 64000 steps.
Flash memory cartridge with program transfer function.
Authentication。
Corresponding EN and UL/cUL authentication.
Faster and more efficient FX2N-80MT-DSS. Support high speed control and network communication, and have the function of data recording.
High speed, large capacity, multi-function high-end machine.
FX3U supports high speed processing, CC-Link communication, network communication, analog control and advanced positioning system.
Connected to the CC-Link, including the remote I/O, the maximum input and output control points up to 384 points,
Can correspond to a variety of field needs, the use of its scalability and flexibility to expand the scope of application of the control system.
Third generation high functiion micro programmable controller FX2N-80MT-DSS.
High speed, high efficiency, high performance, large capacity, and new features.
Built in high speed processing and positioning.
Control points: maximum 256 points.
Use CC-Link remote I/O for 384 poinnts FX2N-80MT-DSS.
Auxiliary relay: 7680 points.
Timer: 512 points.
Counter: 235.
Data register: 8000.
Extended register: 32768 point.
Extended file register: 32768.
