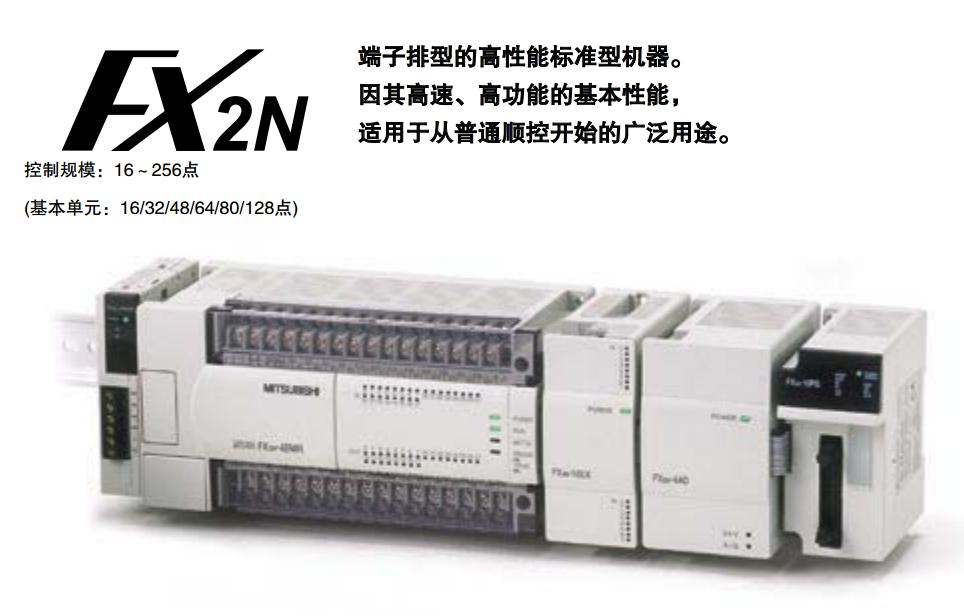

FX2N-48MR-ES/UL PLC

MITSUBISHI FX2N-48MR-ES/UL Manual And Instructions
FX2N-48MR-ES/UL datasheetPDF datasheet
FX2N-48MR-ES/UL PROGRAMMING MANUAL II

MITSUBISHI FX2N-48MR-ES/UL Product information and technical parameters:
Brand: MITSUBISHI
Name: PLC
Model: FX2N-48MR-ES/UL
Max input / output points: 48 points.
Supply voltage: 100 - 240VAC.
Input points: 24 points.
Output points: 24 points.
Output type: relay.
Power consumption: 50VA.
Weight (kg):0.85.
Size (WxHxD) mm:182x90x87.
Note recording function, Component annotation can be recorded in the program register.
Online program editor, online change the program will not lose the working hours or stop production operation.
RUN/STOP switch, running on panel / stop switch easy to operate.
Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications
Password protection, using a eight digit password to protect your program.
Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.
Continuous scanning function, to define the operation cycle for the application of the continuous scan time.
Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).

Length: 2m.
Specification: universal connection cable. Input and output points: 14 points.
Power supply: DC24V.
Input points: 8 points.
Output points: 6 points.
Output form: transistor output (source).
Power consumption: 6.5W.
Weight: 0.22KG.
Outline dimension: 60x90x49mm.
Built in CPU, power supply, input and output FX2N-48MR-ES/UL.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series FX2N-48MR-ES/UL
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000 FX2N-48MR-ES/UL.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on FX2N-48MR-ES/UL. Function: CPU module (internal service power supply).
Input and output points: 80 points.
Power supply capacity (DC5V power): 1100mA.
Power supply capacity (DC24V service power supply): 600mA.
Input / output mode: DC input (drain / source) / transistor (drain).
Input points: 40 points.
Output points: 40 points.
The new expansion module is more convenient!
Pioneer products with advanced built-in functions and rich extensibility.
FX5U built-in analog, communication, high speed input and output,
By extending the board and adapter can be easily extended system.
In addition, through the high speed system bus,
Can maximize the role of the built-in intelligent functions of the expansion device.
Input points: 8 points.
Output points: 6 points.
Power supply voltage: AC100-240V.
Output type: relay output.
Built in CPU, power supply, input and outtput FX2N-48MR-ES/UL. While maintaining the convenience of FX1N while improving performance.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Applicatioon instruction: 0 FX2N-48MR-ES/UL. 5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
